-Folded Height: H=440mm
-Loading capacity: 1*40HQ=10 sets
-Roof Form: Flat Roof
-Number Of Layers: ≤2 layers

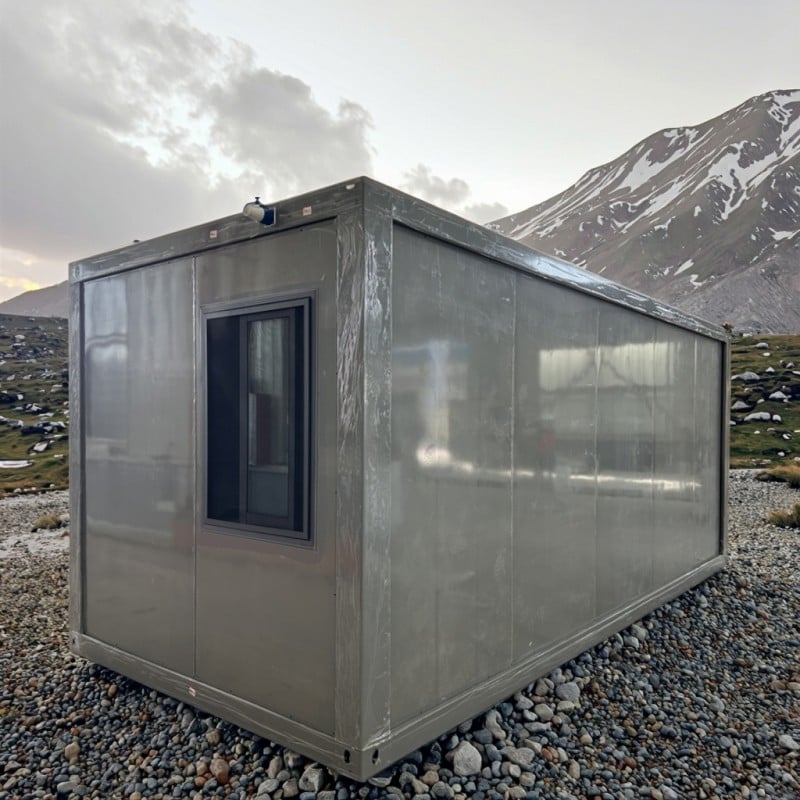

The Folding Flat Pack container house is an innovative modular building that uses a unique "Z-shaped" folding design to achieve rapid unfolding and folding, combining transportation convenience and space utilization. It is suitable for temporary accommodation, construction site camps, emergency relief, commercial retail and other scenarios, meeting the needs of flexible, efficient and environmentally friendly buildings.
Mandatory fields: (Minimum order quantity: ≥10)
MZ ECO Folding House Packing List | ||
|
Folded Height |
H=440mm |
Loading capacity |
1*40HQ=10 sets |
|
Length*Width*Height（mm） |
5900mm*2500mm*2470mm |
|
Roof Form |
Flat Roof |
|
Number Of Layers |
≤2 layers |
|
|
Top main beam |
Roller profile thickness 2.5mm, section height 130mm |
Top second beam |
Galvanized square tube 50*25*1.0mm |
|
bottom main beam |
Roller profile thickness 2.75mm, section height 130mm |
|
bottom second beam |
Galvanized square tube 80*40*1.2mm |
|
steel columns |
L180×W150×H2210mm,Thickness is 2.5mm |
|
Bolt |
8.8 Class High-Strength Bolts, 6 |
|
Paint |
Electrostatic spraying plastic powder baking varnish ≥80μm |
|
Roof |
Roof Panel |
EPS Color Steel Sandwich Panel，Thickness=50mm，Color=White-Gray, Falls freely into the water |
Floor |
Substrate |
18mm Fireproof Glass Magnesium Board |
|
Insulation Cotton |
50mm Thickness Color Steel EPS Sandwich Panel，Class B Fire Protection |
Color steel Plate |
Panel Coler Streel Plate Thickness=0.4mm |
|
Door |
Specification |
Width*Height=840mm*2035mm |
Material |
Steel Door, Concealed Buckle Lock |
|
|
Specification |
800mm*1100mm |
Fram Material |
Plastic Steel |
|
Glass |
Single Glass |
|
|
Voltage |
220V，50Hz |
Wire |
Concealed Line, Total Home Power Line 3*4 Square, Air-conditioning line 3*4 square, Socket Line 3*2.5 Square, Lighting Switch Line |
|
Breaker |
High Breaking Miniature Circuit Breaker |
|
Illumination |
1 set of 1200*300 ultra-thin LED lights, power 36W |
|
Socket |
4 Five-hole sockets 10A (or USB socket), 1 Three-hole air conditioner socket 16A, 1 Single switch 10A |
|
Other |
Folding hardware |
Special Parts, No Hinges |
Standardized construction is adopted, and equipment and accessories conforming to national standards are used | ||
Save transportation and storage costs: The "Z" folding method allows the house to be compressed longitudinally, and the volume after folding is only 1/3~1/4 of the unfolded state, which greatly reduces logistics costs.
Quick assembly and disassembly: No professional tools are required, 2-4 people can complete assembly or folding within 30 minutes~2 hours, improving deployment efficiency.
Economical: Low transportation cost and long service life (more than 10 years).
Durability: Anti-corrosion, moisture-proof, and fire-proof (in line with national building standards).
Customization: Supports personalized configuration of doors, windows, circuits, interiors, etc.
Logistics and transportation: Suitable for rapid conversion of sea, rail and road transportation. After folding, it can reduce the transportation cost and storage space of empty container return.
Warehousing and stacking: After folding, it can save more than 80% of storage space and reduce warehouse costs.
Emergency and temporary facilities: Suitable for disaster relief and temporary buildings. It can be quickly unfolded as a temporary warehouse for rapid deployment after disasters such as earthquakes and floods, and for rescue command and material distribution.
Retail and activities: Suitable for mobile shops and outdoor activities. The foldable design is convenient for adjusting the position or recycling maintenance.
1.Are you a manufacturer or trading company?
a: Hebei Modular Green Building Technology is a manufacturer located in Tangshan city.The factory occupies 50,000 square meters in Tangshan city, which is the world's core production area for steel-based raw materials
b: Only 100 km from Tianjin Port, saving transportation costs
2.Why should you buy from us not from other suppliers?
a: We have over 20 years experience of manufacturer and have 5 national-level builders who have been engaged in research and design for more than 15 years.
b: Official Supplier of Container house for the Beijing Winter Olympics
c: We could make the solution of CAD drawing within 12-24 hours
3.How about the communication process of the project
Got inquiry---discuss requirements---Initial Solutions & Quotation----Details CAD drawing----get approval----customized sample----Pl----Deposit----Production inspection on the Internet----Inspection before loading---container--Balance payment---Shipment
4.What services can we provide?
a:10-100sets,10-30wordays,more 200sets30-50workday
b: Face time, face meeting, face inspection
c: Support installation on the Internet
d:FOB,CFR,CIF,EXW,DDP,DDU
Are you ready to build your own container home? Contact us today for a free consultation and quote. Our team of experts is here to help you.
