Expanded dimensions:5900mm×2500mm×2470mm
Folded dimensions:5900mmx2500mmx440mm

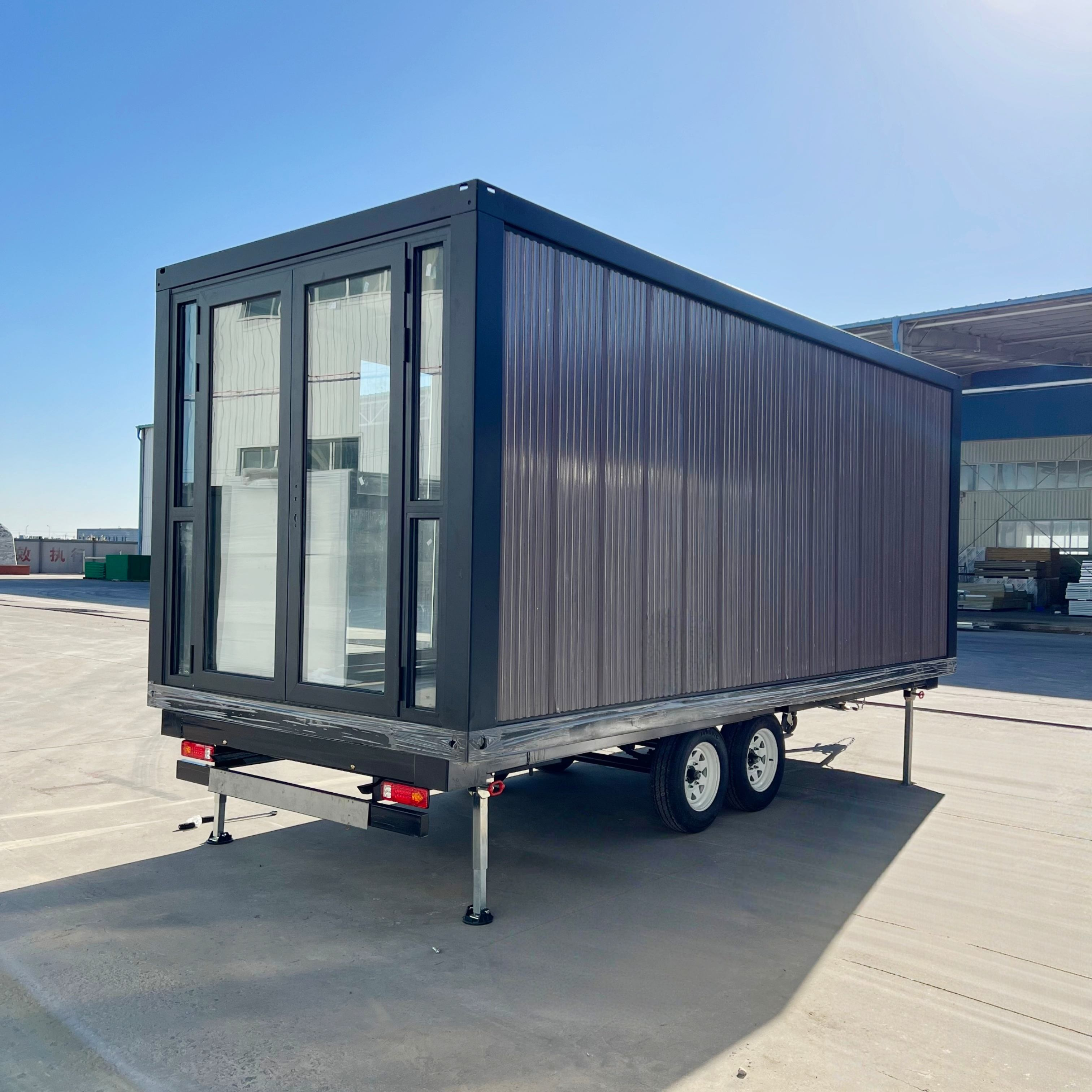

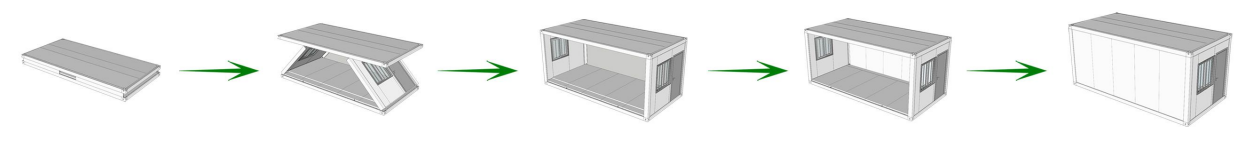

The Z-Fold Container House is an innovative modular prefabricated building featuring a unique "Z"-shaped folding mechanism, which allows the side wall panels to fold inward toward the bottom frame, achieving flat-pack shipping. This product integrates transportation convenience, installation efficiency, structural stability, and living comfort, making it widely applicable in various scenarios such as construction site temporary facilities, commercial spaces, tourist accommodations, emergency housing, and more.
Product Parameters
Minimum order quantity: ≥1
| MZ ECO Folding House Packing List | ||
| Product specifications | Folded Height | H=440mm |
| Loading capacity | 1*40HQ=10 sets | |
| Length*Width*Height（mm） | 5900mm*2500mm*2470mm | |
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Top main beam | Roller profile thickness 2.5mm, section height 130mm |
| Top second beam | Galvanized square tube 50*25*1.0mm | |
| bottom main beam | Roller profile thickness 2.75mm, section height 130mm | |
| bottom second beam | Galvanized square tube 80*40*1.2mm | |
| steel columns | L180×W150×H2210mm,Thickness is 2.5mm | |
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Wall panel | 50mm EPS/Glass wool/Rock wool sandwich panel | |
| Door | Optional doors | |
| Window | Aluminium alloy silding window (white) | |
| Floor | Fireproof panel +PVC board | |
| Bathroom | Custom requirement | |
| Electricity | Optional standard | |
| Wall permitted loading | 0.6kn/m2 | |
| Snow load capacity of roofing | 0.6kn/m2 | |
| Live load capacity of roofing | 0.6kn/m2 | |
| Delivery time | 7-14 days | |
| Certificate | ISO, CE, SGS | |
| Manufacturer | 16 Years Original Manufacturer | |
| wind resistance | 110 – 140 km/h (Force 10-12 winds / Category 1 Hurricane ) | |
| seismic intensity | up to a Magnitude 8.0 earthquake | |
| roof load-bearing capacity | 1.5 – 4.5 kN/m² | |
| service life | 15-30 years | |
1. Zero Pollution & Eco-Friendly
No construction waste on site, energy-saving and environmentally friendly. Easy to transport with high shipping volume efficiency.
2. High Turnover Rate
Each unit can be reused multiple times. Interior components remain largely undamaged and require no repairs or rework.
3. Rapid Installation & Hoisting
Quick assembly with crane – 100% faster installation compared to traditional prefab buildings. The larger the project, the more significant the time savings.
4. Stronger & More Durable
Significantly improved integration. Enhanced seismic resistance and deformation resistance.

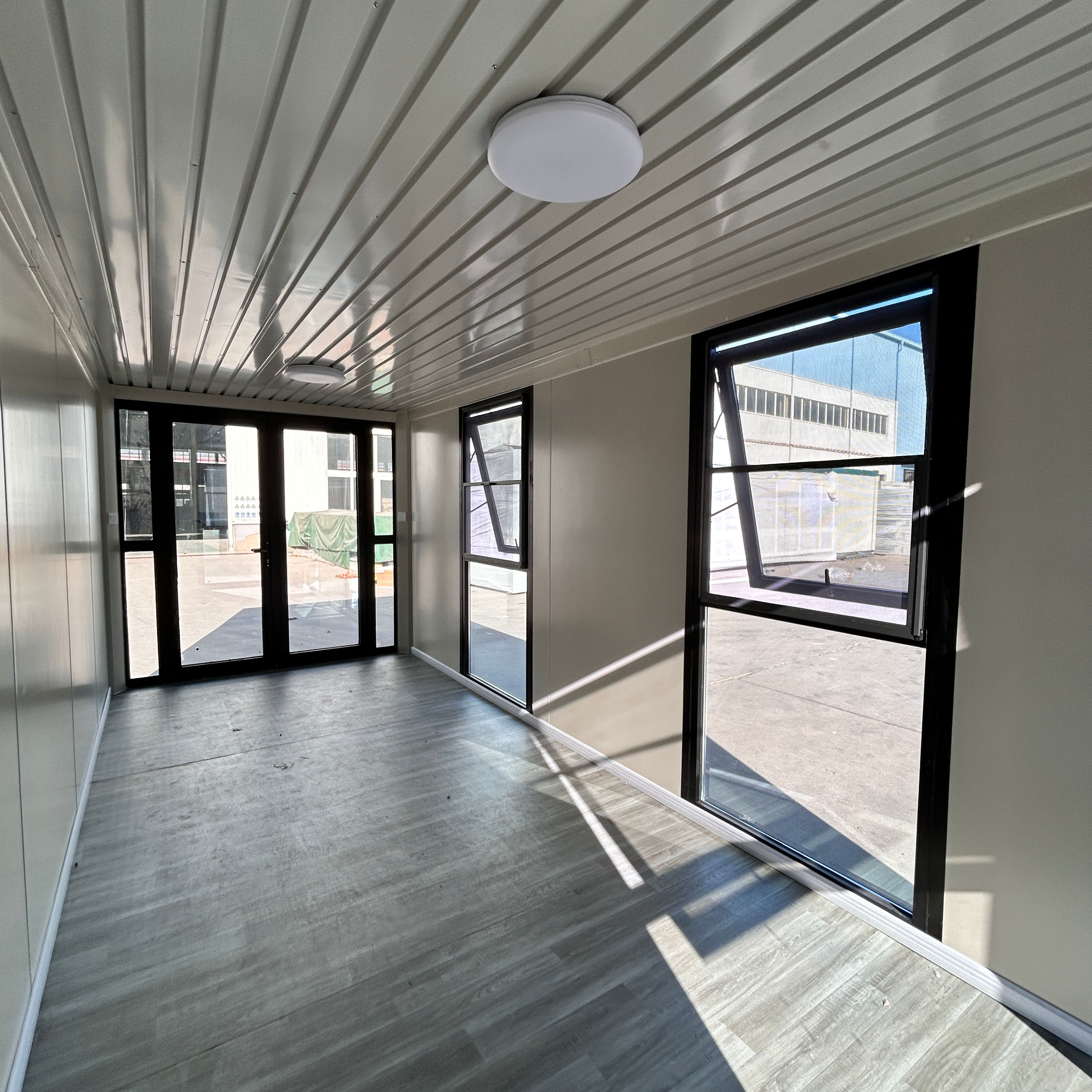

5. Aesthetic Interior & Superior Sealing
Provides a beautiful, elegant interior appearance while greatly improving air tightness and weather sealing.
6. Flexible Combination Options
Can be freely combined and arranged in various configurations, allowing for many derived combination spaces.
7. Increased Interior Space
Interior volume is expanded, with a 0.6% increase in spatial capacity.
8. Integrated Roof Gutter System
Features a cleverly designed roof drainage system with built-in gutters, easily solving roof rainwater management.
Customize a variety of options according to your needs
Fully Customizable Container Houses with Reliable Low-Cost Shipping We offer customizable prefab container homes tailored to your unique needs, with flexible options for every detail of your space:
✅ Custom Doors & Windows: Choose from various sizes, styles, and materials (aluminum alloy, tempered glass, etc.) to match your design and functional requirements
✅ Electrical Outlets & Wiring: Customize socket positions, circuit layouts, and power configurations for residential, office, or commercial use
✅ Interior Wall Panels: Select from fireproof, moisture-proof, and eco-friendly wall materials (PVC, cement board, etc.) with customizable.
✅ Bathroom & Sanitary Systems: Fully equipped custom bathroom solutions, including toilets, showers, sinks, and waterproof layouts, ready for immediate use
✅ More Custom Options: Flooring, insulation, kitchen setups, partition walls, and more, all built to your specifications.
As a professional prefab container house manufacturer, we boast a complete, end-to-end production system and robust manufacturing capacity to meet your bulk orders, custom projects, and global delivery demands.
Reliable & Cost-Effective Container Shipping Solutions
We specialize in safe, efficient, and budget-friendly container transportation for your goods. As shown, our professional team uses standard forklift operations and secure container loading to ensure your cargo is handled with the utmost care throughout the entire process.
Our 40HQ containers can load 1-6sets of your products, maximizing space utilization and cutting down your shipping costs significantly. With strict loading standards, reinforced fixation, and full-process quality control, we guarantee your goods arrive at the destination safely and on time, whether for bulk orders or large-scale shipments.
Partner with us for reliable logistics support that saves you money and gives you peace of mind.
Frequently Asked Questions
1.Are you a manufacturer or trading company?
a: Hebei Modular Green Building Technology is a manufacturer located in Tangshan city.The factory occupies 50,000 square meters in Tangshan city, which is the world's core production area for steel-based raw materials
b: Only 100 km from Tianjin Port, saving transportation costs
2.Why should you buy from us not from other suppliers?
a: We have over 20 years experience of manufacturer and have 5 national-level builders who have been engaged in research and design for more than 15 years.
b: Official Supplier of Container house for the Beijing Winter Olympics
c: We could make the solution of CAD drawing within 12-24 hours
3.How about the communication process of the project
Got inquiry---discuss requirements---Initial Solutions & Quotation----Details CAD drawing----get approval----customized sample----Pl----Deposit----Production inspection on the Internet----Inspection before loading---container--Balance payment---Shipment
4.What services can we provide?
a:10-100sets,10-30wordays,more 200sets30-50workday
b: Face time, face meeting, face inspection
c: Support installation on the Internet
d:FOB,CFR,CIF,EXW,DDP,DDU
